Auto Clamping System, Guided on both sides
Light Curtain Safety System
Powerful Inclined Cutting System
Optical Cutting LineBlade cutting depth adjustment Outside
LCD Display with more Settings information(45025/46023/46025)
different Clamping pressure with separate moton
80 groups X 99 steps Program for repeat cuts(45025/460Z5)

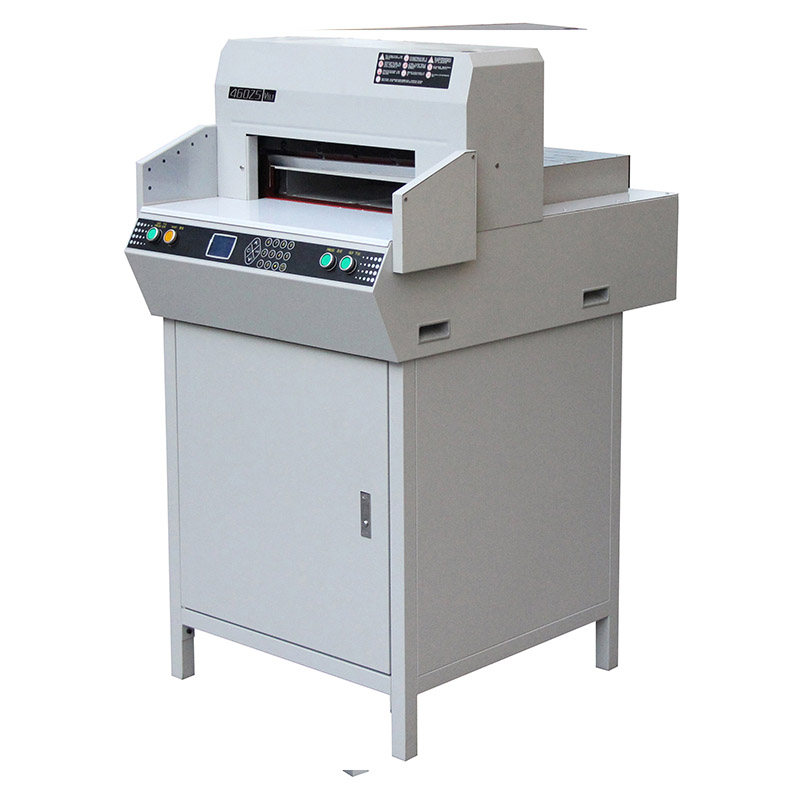

| Model | 450V7 | 450Z3 | 450Z5 | 460Z3 | 460Z5 |
| Max cutting size(mm) | 450*450 | 450*450 | 450*450 | 460*460 | 460*460 |
| Min cutting size(mm) | 50 | 50 | 50 | 30 | 30 |
| Max cuting thickness(mm) | 50 | 50 | 50 | 60 | 60 |
| Precise | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Paper pushing | Manual | Digital | Program | Digital | Program |
| Display | LED | LED | LCD | LCD | LCD |
| Voltage | 220V(110V)±10%50Hz(60Hz) | ||||
| power(W) | 900 | 1000 | 1000 | 1000 | 1000 |
| Dimension(mm) | 760*660*1280 | 760*660*1280 | 900*660*1280 | 945*725*1310 | 945*725*1310 |
| N.W(KG) | 120 | 135 | 135 | 150 | 150 |
