MQ-930 FLATBED DIE CUTTING MACHINE

Share to:

MQ-930

MQ-930 High speed automatic flatbed die cutting machine is the professional equipment in die cutting, creasing, embossing of various kind of normal paper, pe coated paper. It applies to paper cup, paper box, and etc.

It adopts PLC control(micro-computer), touch screen operate, servo motor, frequency converter, automatic counting, pneumatic lock cutting plate, oil lubrication, overload protection, and pneumatic clutch. All of these to make sure the machine at precise positioning, and working stable.

Main Parts:

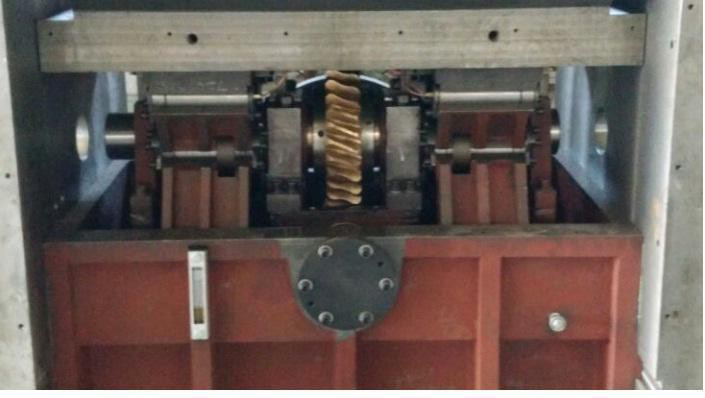

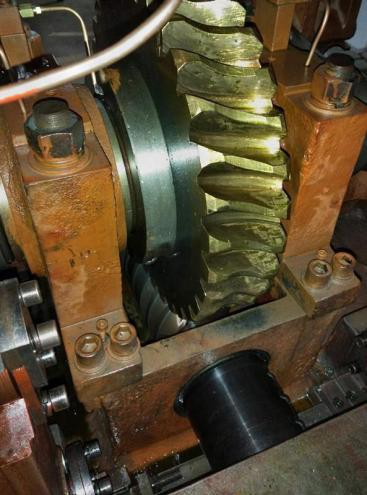

   Worm and worm gear with crankshaft system, to ensure the powerful and steady pressure. And convenient to adjust the pressure through the touch screen.



  Pressure Adjusted, can be automatic through the motor to the four sheet by the touch screen. It is convenience to adjust.

  Lubrication oil circulation, to ensure it runs smoothly and make the machine long lifetime. The oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil.

  Paper feeding by servo motor (YASKAWA, Japan), and the sensor (SICK, Germany) to check the color code of printing to ensure fix the paper position accurately.

  The die-cutting frame is locked by 4 piece of cylinder, pneumatic locked. The die-cutting down steel board from Taiwan.

  Pneumatic clutch, to protect the machine when start and emergency stop.

The collect table working with sensor, it can stack the paper autom


  The roll for paper loading, it adopts the hydraulic and it is much stronger.









Model

MQ-930

Working speed

80-120times/min

Maximum pressure

250TON

Material

100-500gsm pe coated paper or card paper

Max cutting size

940×540mm

Max paper width

910mm

The diameter of paper roll

1500mm

Cut precision

± 0.10mm

Total weight

8TON

Total power

12KW

Air source

0.8mpa (need to have compressor)

Overall dimension

1830x1830x1900mm, 2200x1830x1400mm (LxWxH)
