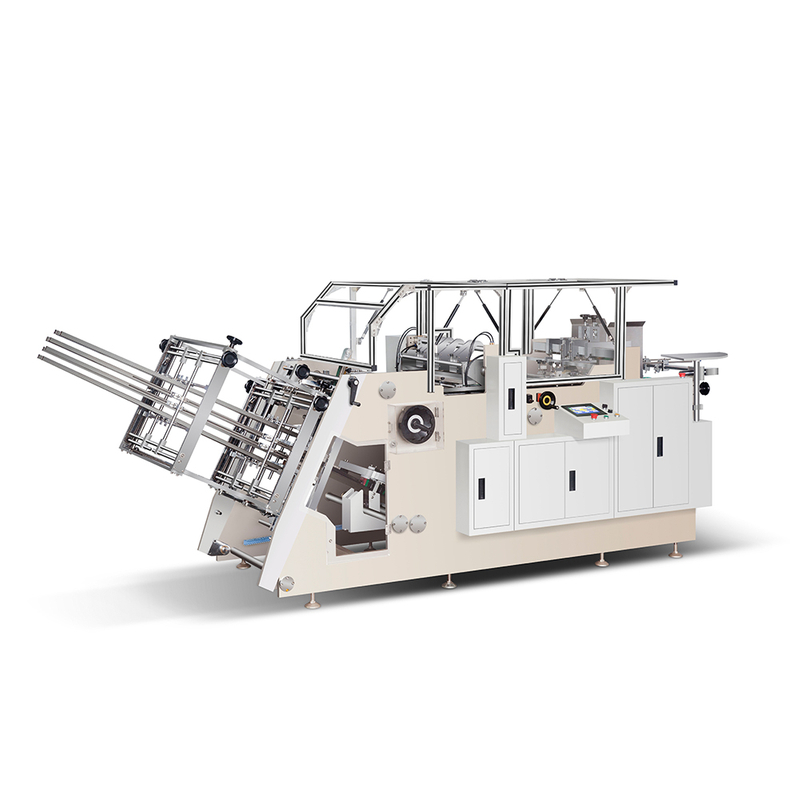

BWCF-800 Automatic Paper Carton Erecting Forming Machine

Share to:

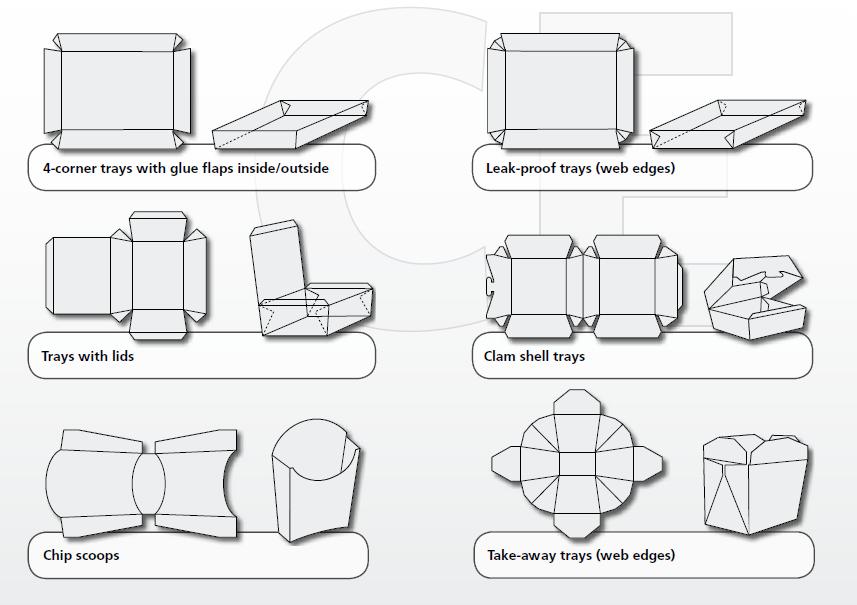

BWZF-800 paper carton erecting machine is an ideal choice to produce hamburger boxes,chips boxes,take away box,etc.It adopts micro-computer,PLC,servo feeding,alternating current frequency converter ,the vacuum-sucking,auto gluing,automatic paper tape counting,chain drive.All of these main parts and electric control system adopts famous brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation
  • BWCF-800

Automatic Paper Carton Erecting Forming Machine

案例1案例2

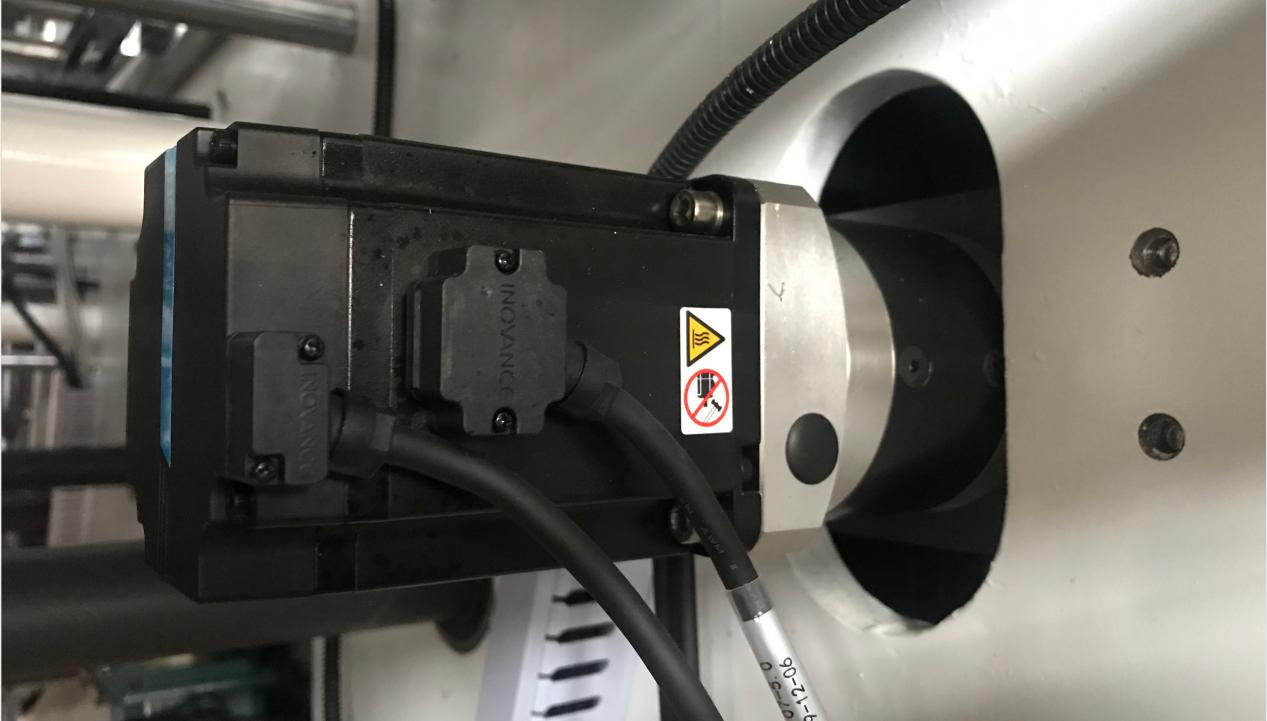

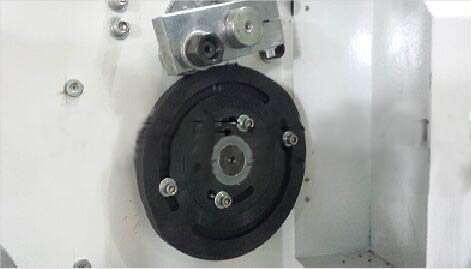

Feeding system:Servo controlled feeding system,Sensor detection system

No need the adjust the distance or change different size cam to control feeding .It save the time and more precision when change the mold.

Sensor detection to control start and stop feeding and will replace the up down part.Feeding will be much more steady.

图片1图片2

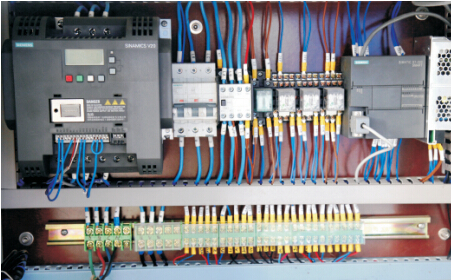

Standard electric box and marked clearly.


Standard electric box and marked clearly.

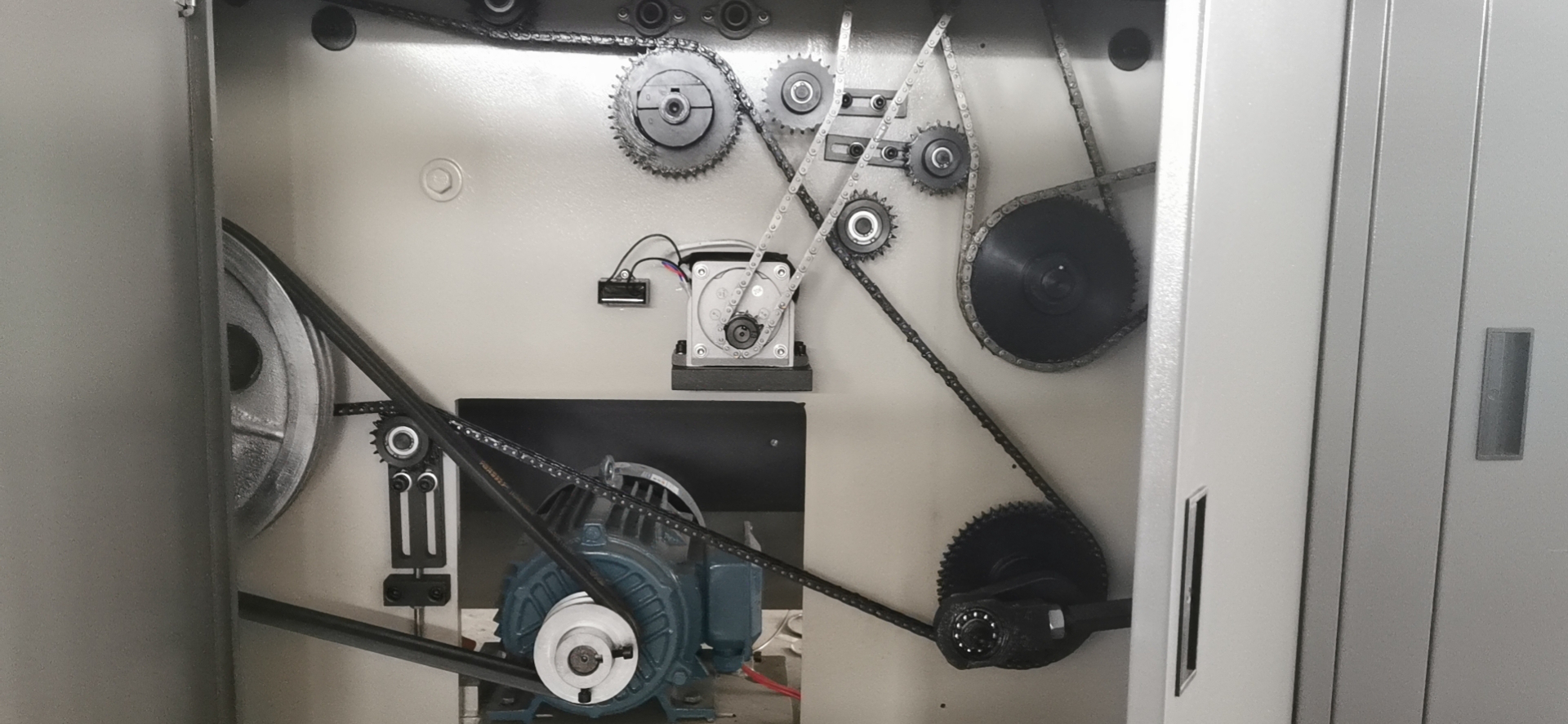

图片4Motor controlled gluing system.Inject glue and change the gluing sponge easily and quickly.

图片5图片6

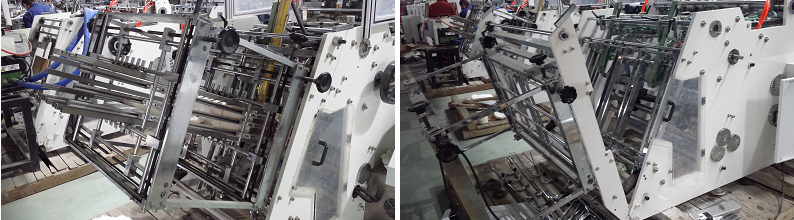

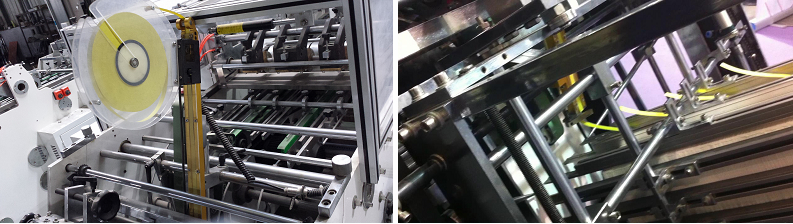

The collecting frame can be opened in three parts.It is easier to install the forming spare part and commissioning.


It adapts the paper tape inserter for counting.


信息排版-恢复的_01

Type

BWCF-800

Production capacity:

50-180 pcs/min

Suitable Material:

200-600gsm  card paper,PE coated paper, kraft paper, corrugated paper

Paper open length:

L100-450mm,degree:5°-40°

Paper open width:

B100-600mm

Height H15-200mm

Total Power:

5KW

Weight:

1.7T

Dimension:

3600 x1400 x 1700 mm

power source

380V 50HZ
