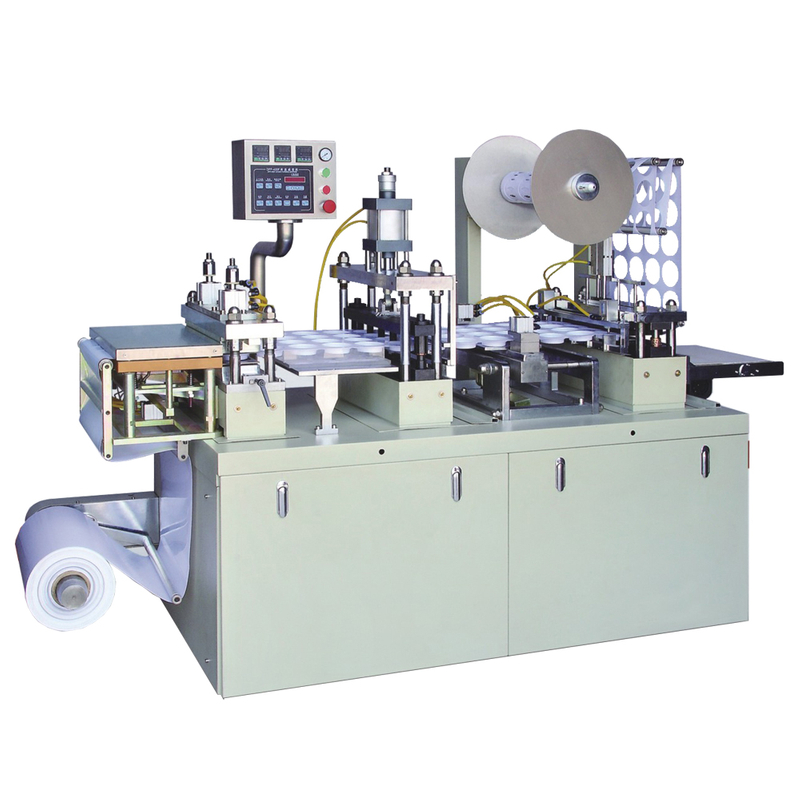

450 Cup Lid Forming Machine

Share to:
  • 450

450s

This machine can use almost all kinds of plastic material, like PS, PVC, PET, OPP, PE and so on, but except PP, you can make lids with diameter 30-130mm by changing mould.



The main process including Preheating----Forming----Punching---Die cutting.

Technical Data:

1. Speed: 20-45 strokes/min.

2. Diameter of Lids: 30-130mm.

3. Max roll diameter: 540mm

4. Max width of material in Roll: 460mm (More cavities)

5. Max Forming Depth: 26mm.

6. Total Power: 3kw.

7. Air Consumption: 0.2cbm/min.

8. Air Pressure: 0.4-0.7mpa.

9. Dimensions of Machine: 2600mm×1100mm×1700mm.

10. Weight: 850kgs.
