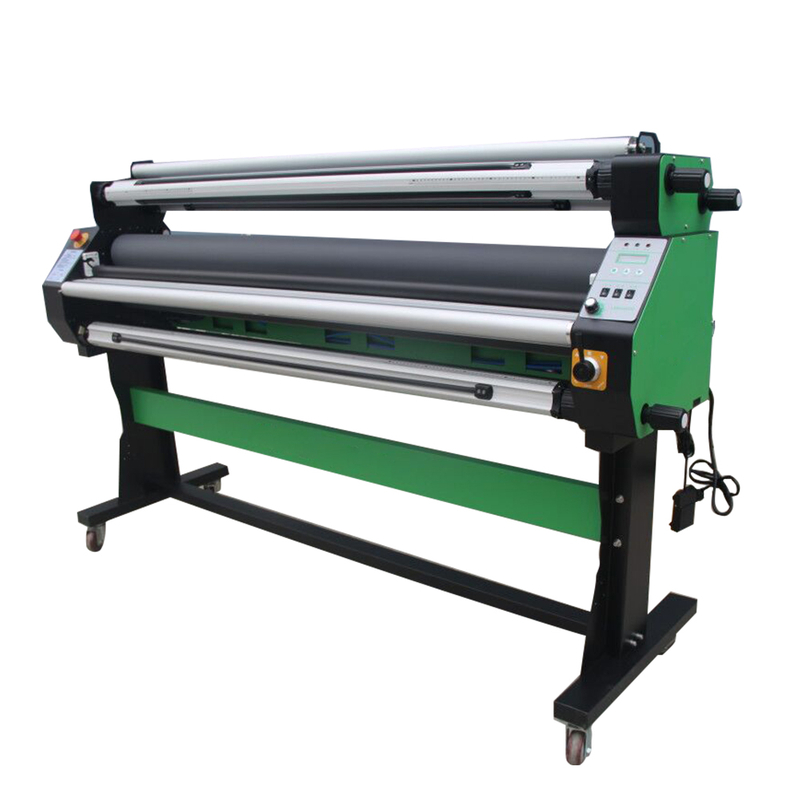

MF1700-D4
Specifications
Max Laminating Width：1630mm
Max Laminating Thickness：23mm
Max Speed：Up to 6m/min
Max Temp：60°C/140°F
Rollers: Silicon(120mm diameter)
Pressure/Height Adjust：Pneumatic
Heated Method：Infrared
Preheating Time：5-10 min
Power Input：1200W
KW/H：0.5-0.8
Volt：110/220V，50/60HZ
Emergency Button:1
Laser Eye:Yes
Performance
·Pneumatic roller up and down ensures even pressure
·Silicon rollers provide heavy-duty work and longer life
·Adjustable settings for increased capacity and versatility
Features
·Simple adjustment tension
·Light weight drop-in supply shafts with auto-grip for easy loading of materials
·Fully adjustable nip-gap and pressure for precise application
·Roll-to-Roll operation capacity
Safety
·Foot switch for hands free operation
·Laser safety eyes and 1 emergency stop
·CE
