PK0604
Availability: | |
---|---|

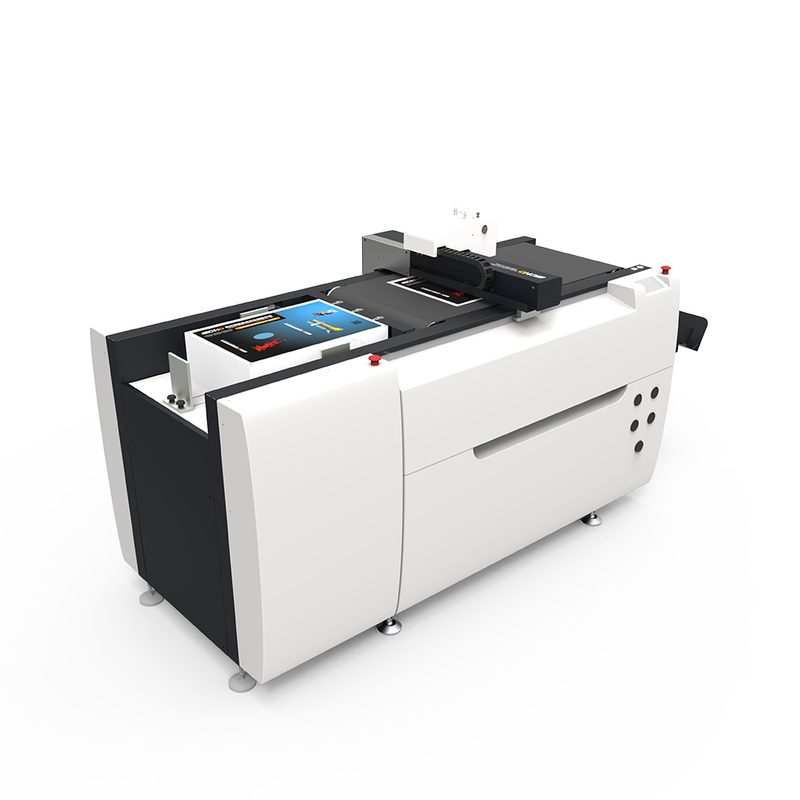

Digital Sample cutting machine
PK0604/PK0705
Mould-free Cost-saving Automatic die processing
Machine Introduction
PK series automatic digital cutting plotter, is an intelligent digital cutting system designed for graphic, advertising, printing/packaging, sign graphics sample making and short run production. advanced 6-axis high speed motion control system, can perform fast and accurate process like through cutting, kiss-cut, creasing, dotted cut, perforation, marking etc., all functions on one machine. The model is equipped with automatic feeding system, HD vision positioning system with CCD Camera, to realize fully automatic production. It can assist customers to produce easily precise, innovative, unique, high quality value added product in limited time and space.
Processing materials:
cardboard, gray board, corrugated board, honeycomb board, PP board, PVC, EVA, EPE, rubber etc
Features
1 Integrated design: machine adopts an integral welding frame, ergonomically designed and small size. the smallest model occupies 2 sqm. Wheels make it easy to move around.
2 Only 220V single phase electricity required, vacuum suction system is used to fix material on the table during cut.
2 Automatic loading device: It can automatically load material sheets on the cutting table continuously, material stack up to 120mm (400pcs card board of 250g).
3 Conveyor belt automatically send finished material to collecting area.
4 Equipped with electric oscillating Tool(EOT), it can cut material up to 6mm, enable to process variable materials.
5 Pneumatic creasing tool, tool pressure up to 4 kg, creasing clear and easy to bend. Card paper more than 400g can be processed.
6 Equipped with two graphic cutting tool(Drag knife), separate cutting pressure and depth can be set, which makes operation much convenient when change cutting materials frequently.
7 Three type tools are available and they can be switched automatically by the system.
8 High precision vision registration system (CCD): with high resolution CCD camera, it can realize accurate contour cutting on different materials.
9 Software is easy to operate, one click to start, no need complicated settings.
PK0705 cutting area 750mmX530mm
Configuration: Two graphic tool One creasing tool | Configuration: Two graphic tool One creasing tool One electric oscillating tool(EOT) |
Automatic sheet loading system
Features of software
l Professional digital die cutting application software.
l Seamless connection with designing software and box design software, compatible with CDR, AI, Artios cad, KASEMAKE, Box-Vellum, packaging magician, etc.
l With layered operation process, software operation follows the mainstream design software style, which is more in line with the designer’s operation habit.
l The software can automatically match the data to cutting, creasing, dotted line and other processes, without additional manual settings, and cut directly after import.
l Marking point plug-in software module can automatically generate registration marks in AI and CDR.
l 6 positioning method, compatible with different printing marks.
l Automatically connect segments in cutting file to improve cutting efficiency.
l Automatically set and generate dotted line in the cutting file.
l Convenient operation: Convenience and efficiency is important symbol of IBrightcut system. With the guidance of IECHO professional technicians, you will know the basic operation of IBrightcut system within 1 hour, and you can master the operation of the IBrightcut system in one day.
l You can configure the display and position of each shortcut according to your own habits and preferences; you can set the position where the machine head stays after completing the task; you can set the when to automatically turn off the vacuum pump and turn off the vacuum pump after the task is completed.
l Cloud service module: Customers can enjoy fast online services through the cloud service module. The service content includes: remote problem diagnosis. Customers can get the help of professional network engineers remotely before the engineer has come to the service.
l Remote system upgrade: We will release the latest operating system to the cloud service module in time, and customers can upgrade online for free.
Cutting materials
