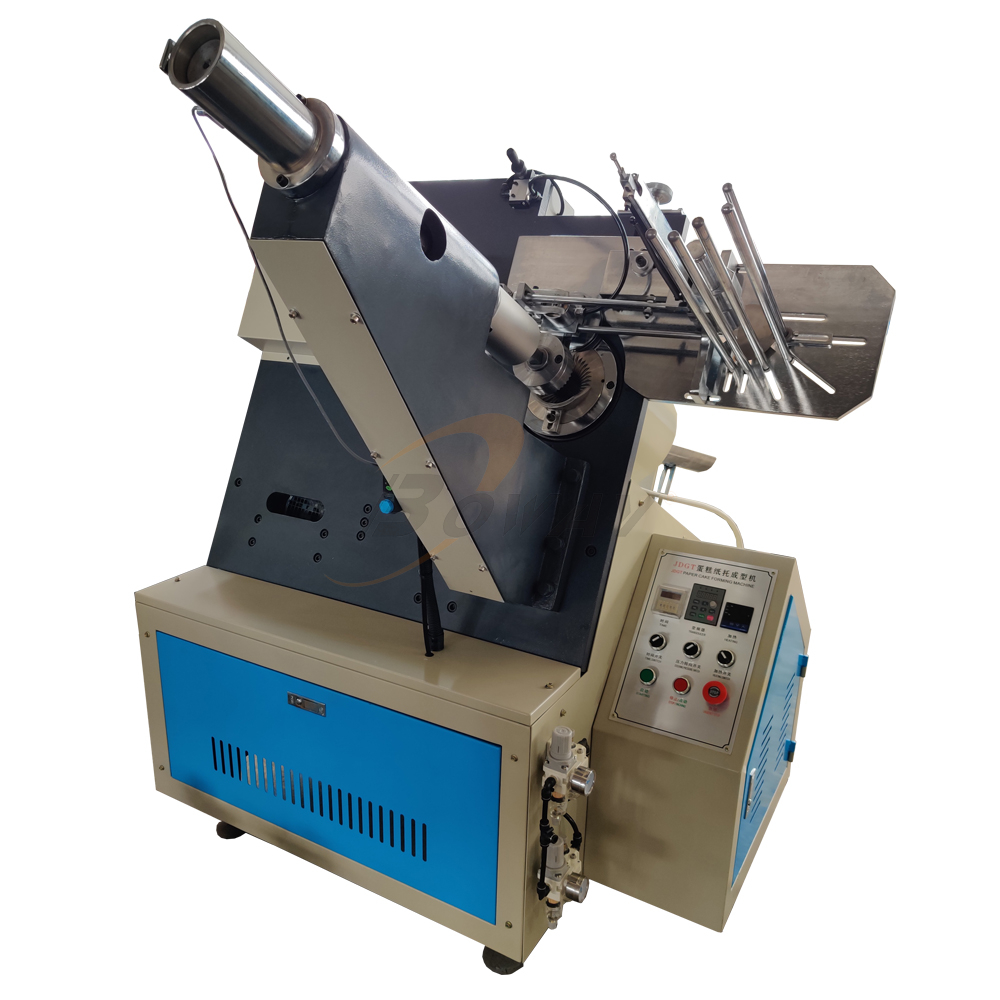

JDGT cake tray machine

Share to:
  • JDGT
Availability:

Description of the machine:

JDGT Cake Tray Forming Machine use machine hand to clip paper, feeding paper, separate paper, punching, discharge etc. This model can make different size of cake tray through changing mould. Simple structure, inverter, auto temperature controller, easy to operate, high efficient, stable running.

Work flow:

Blank Raw material paper  → printing (printing machine)  → punching (punching machine)  → finished paper muffin cup (paper cake tray forming machine)  → packing (depends)

图片 8图片 7图片 16图片 17图片 14

Model

JDGT

Size of paper diameter

Φ40-φ150mm

Max round paper diameter :150mm

Max square paper diameter:130mm

Material

greaseproof paper 28-110gsm

Thickness of paper

28-110gsm

Speed

15-30pcs/time ,20-40times/min.(800-1000pcs/min)

Power supply

380V,50HZ,220v ( it can be changed if customer require)

Total Power

2.5KW

Machine weight

700kgs

Measure(L*W*H)

1610×1350×1600mm

Air supply

0.5Mpa 0.3 m3/min (need buy a separate air compressor)

HS CODE

84413090000
